3D UV Twill Fabric
Product Detail
3D UV Twill Fabric Print & Cut Heat Transfer Fabric
3D UV twill fabric print & cut Heat Transfer Fabric (HTE-300S) is a rugged Imitation embroidery nylon twill heat transfer fabric. It uses UV soft ink to heat transfer images onto jerseys, uniforms, sweaters, cotton canvas bags, ski suits, clothing labels, and athletic shoe labels. Two, three, or more passes can be applied to enhance color vibrancy and saturation. Due to the thickness of the nylon fabric, ordinary cutting machines cannot cut it perfectly; a laser cutter is recommended for fine cutting.
3D UV Twill Fabric ( HTE-300S Twill )
■ Compatible with UV soft ink
■ Thickness: Total 680μm / Embroidery Fabric Layer 580μm

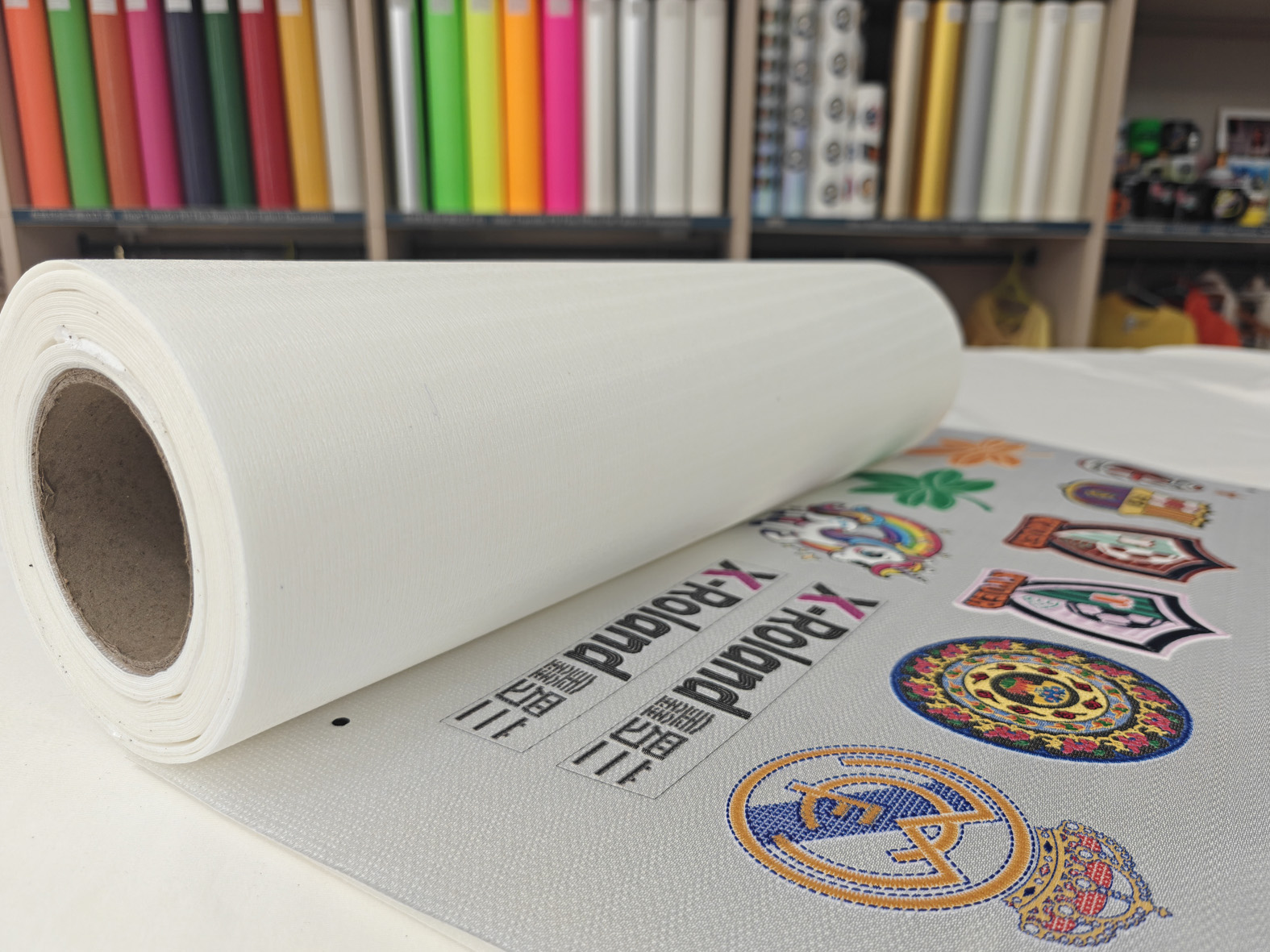

■ Sizes: 50cm × 30M, 100cm × 30M per roll
■ Ideal for print stability, and consistent cutting
■ Applicable Equipment: Combination of UV soft ink inkjet printer & laser cutter
■ Application: Imitation embroidery patches for jerseys, team uniforms and workwear
3D UV Twill Fabric for Uniform Logo
Product Uasge
3.Printer Recommendations
It can be printed by UV soft inkjet printer and laser cutting machine.
4.Heat press transferring

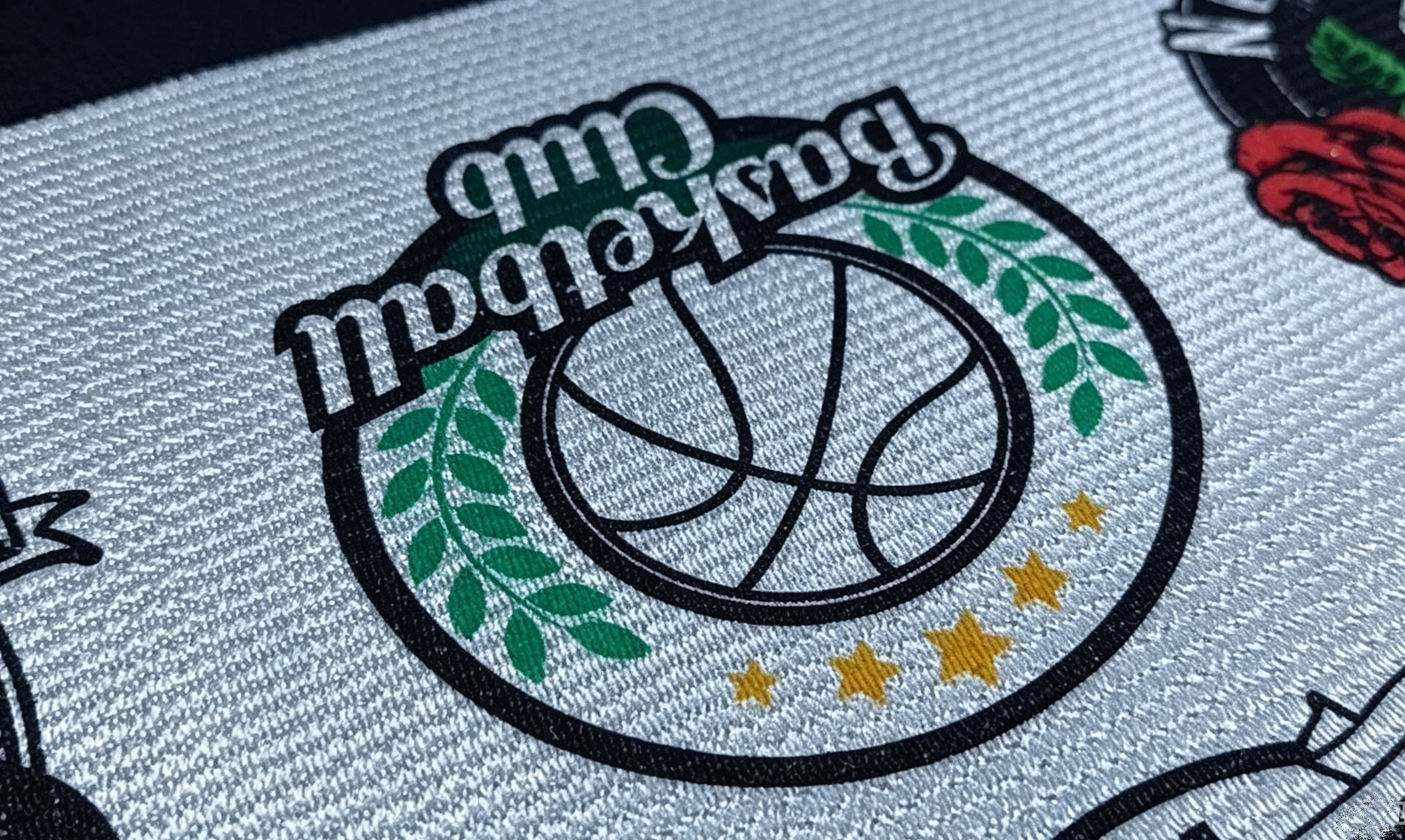

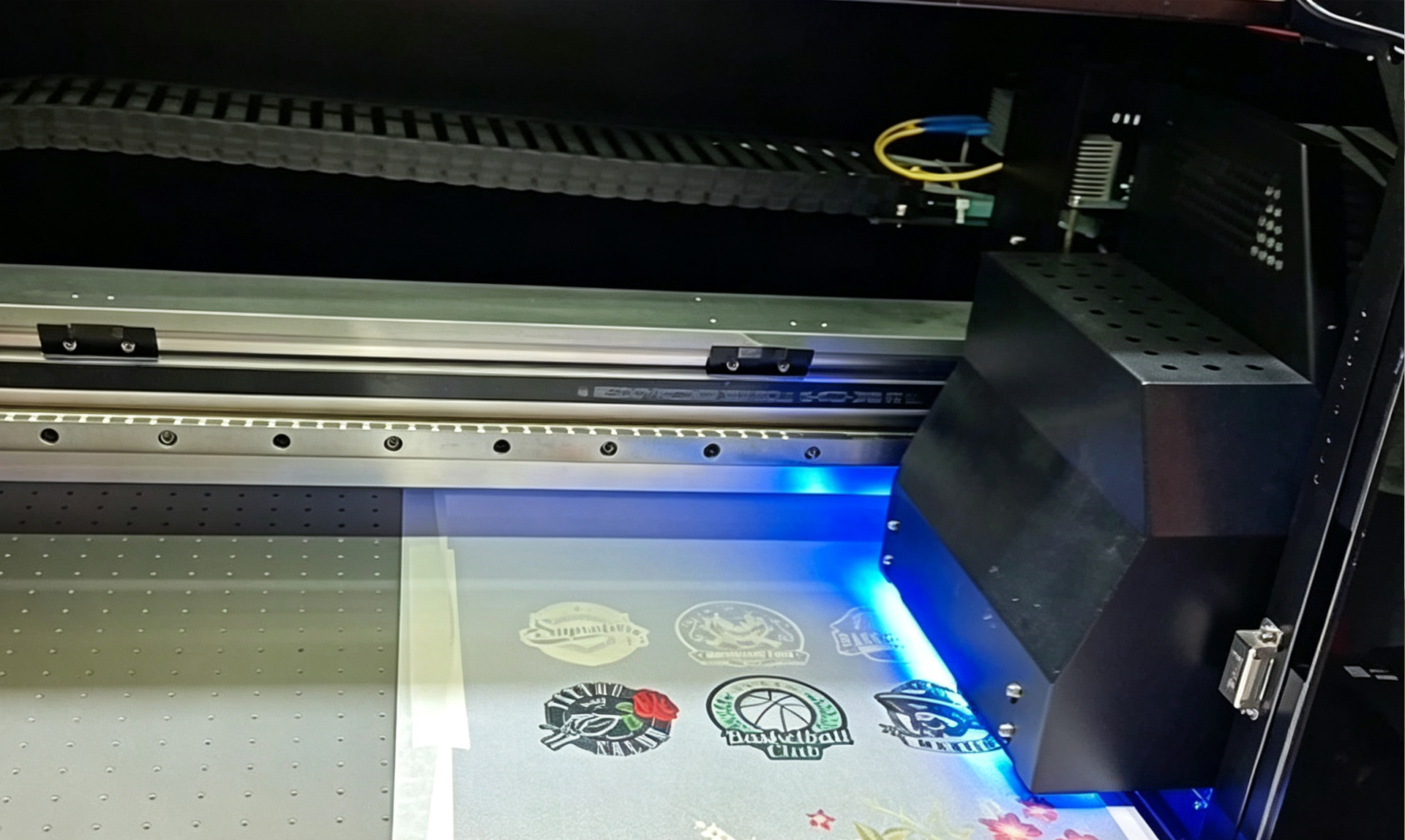

Step 1: Print patterns by UV Printers
Step 2：laser cutting

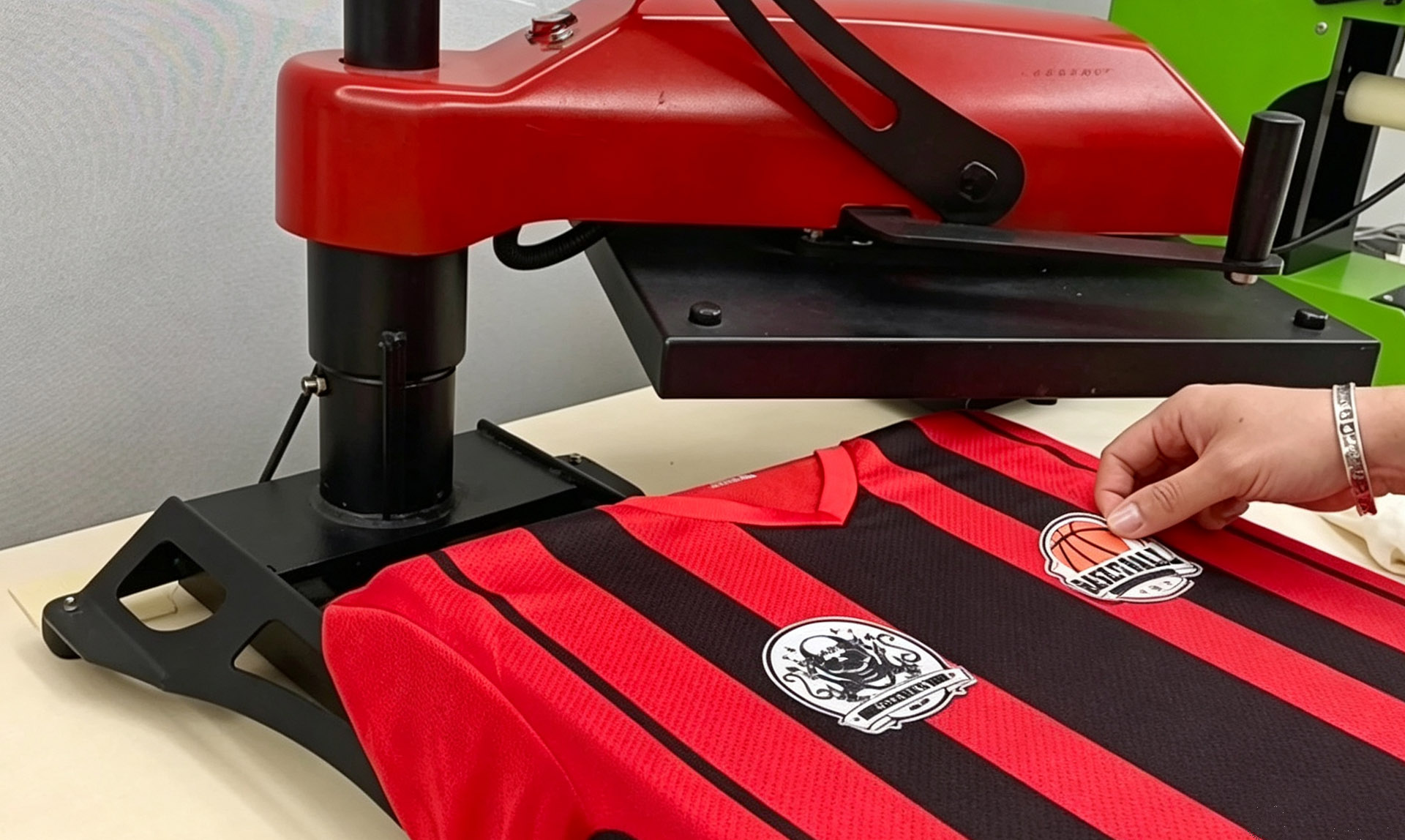

Step 3：Place the image line facing upwards onto the target fabric laminate with adhesive film.

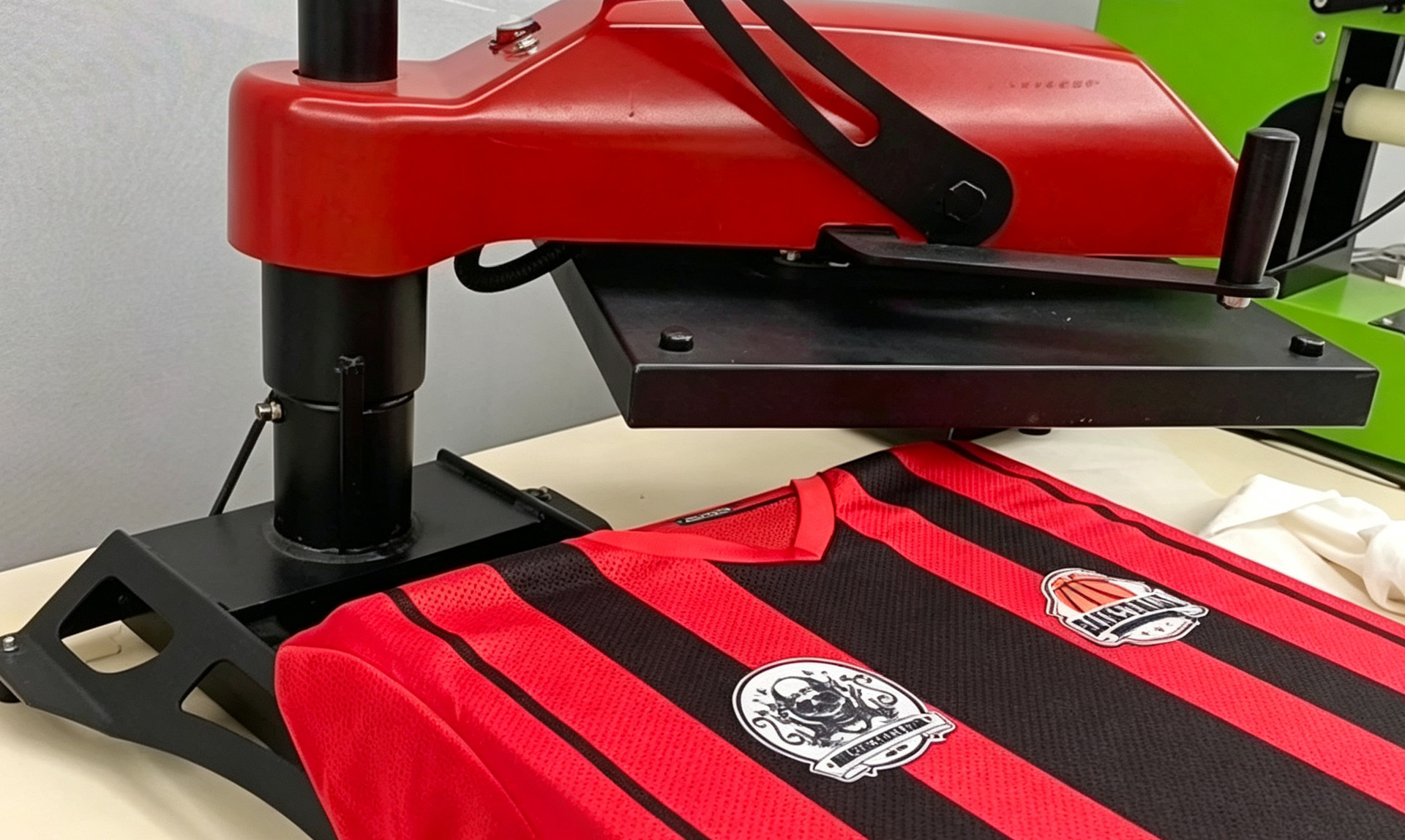

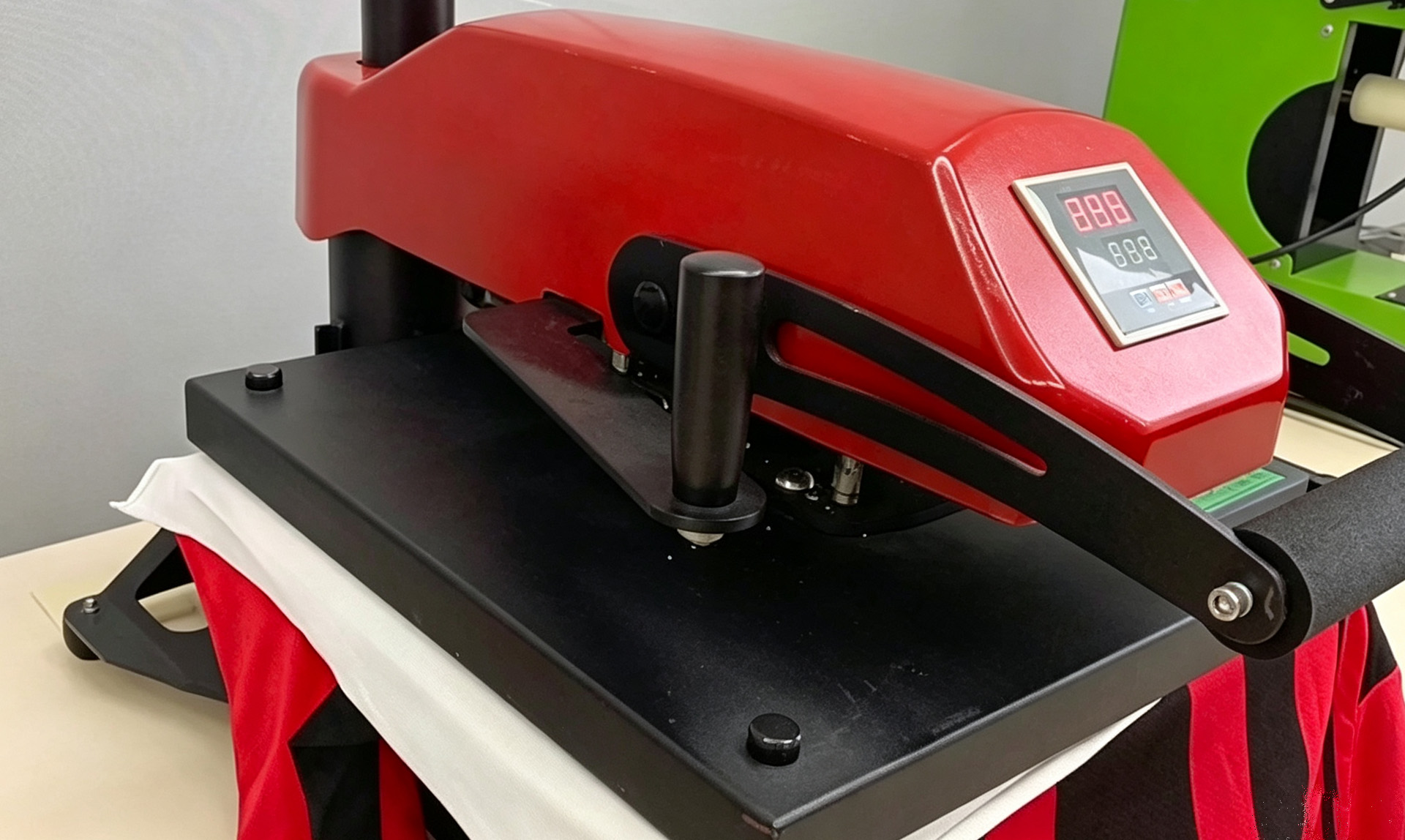

Step 4：Setting a heat press at 165°C for 25 seconds using moderate pressure.
Step 5：Peel the adhesive polyester film starting at the corner. Finished.
